Chrysler 300 2004-2010 Vertical Lambo Doors

Name: Chrysler 300 2004-2010 Vertical Lambo Doors
Brand: Vertical Doors, Inc.
SKU: VDCCRY3000410
Price: 1199.00 USD
Availability: InStock

Made in the USA by Vertical Doors, Inc.Part # VDCCRY3000410

$1,199 $1,599 Made to order

Made to order by Vertical Doors, Inc.: ships in 10–15 business days, then 3–5 days by FedEx Ground in the US.

Fits Chrysler 300 2004–2010. Check yours:

Total · free US shipping

$1,199

or pay with

Kits for more than one car?

Each kit fits one car model. Add this one, then your next car’s; pay once for all.

// About this kit

Part number: VDCCRY3000410
Fits: Chrysler 3002004–2010
Made by: Vertical Doors, Inc., USA
In the kit: Left and right hinge assemblies, gas shocks, mounting hardware, instructions

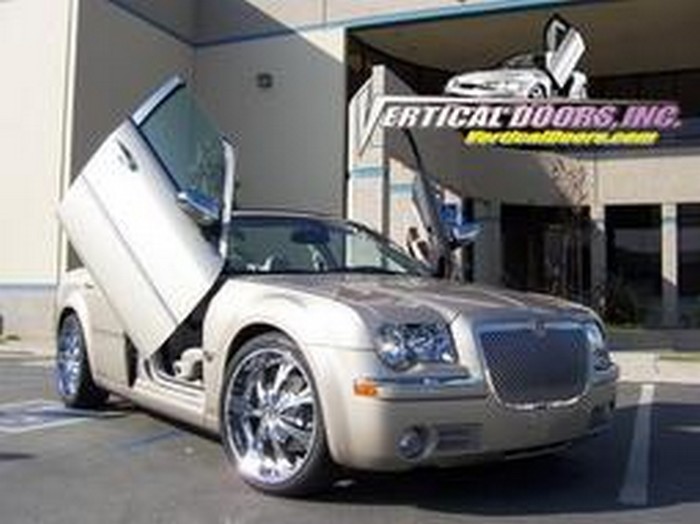

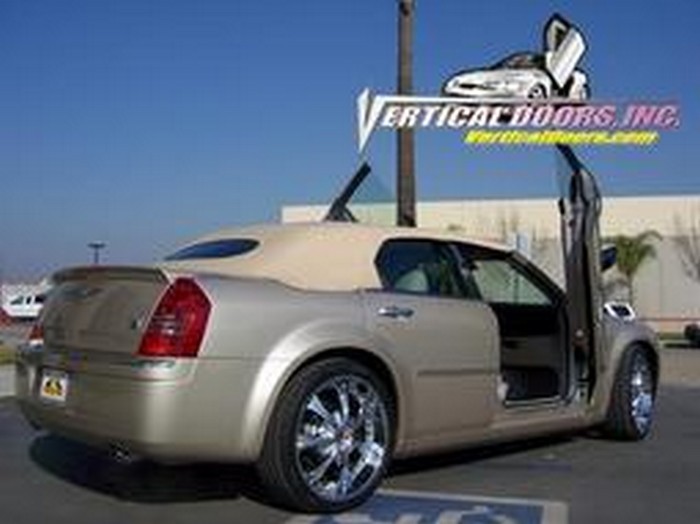

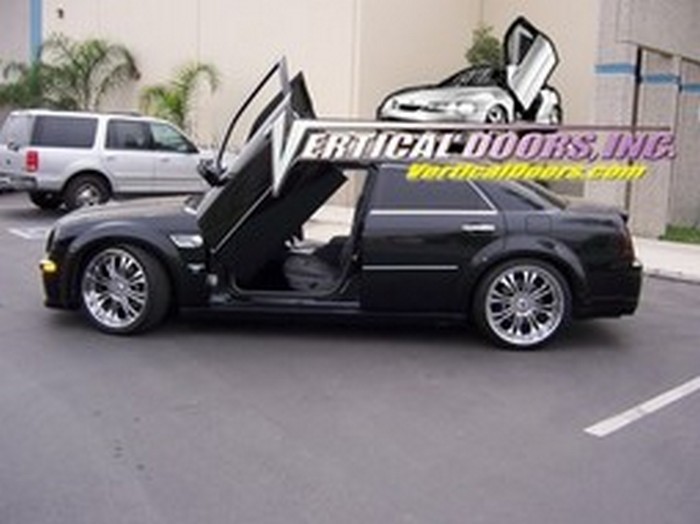

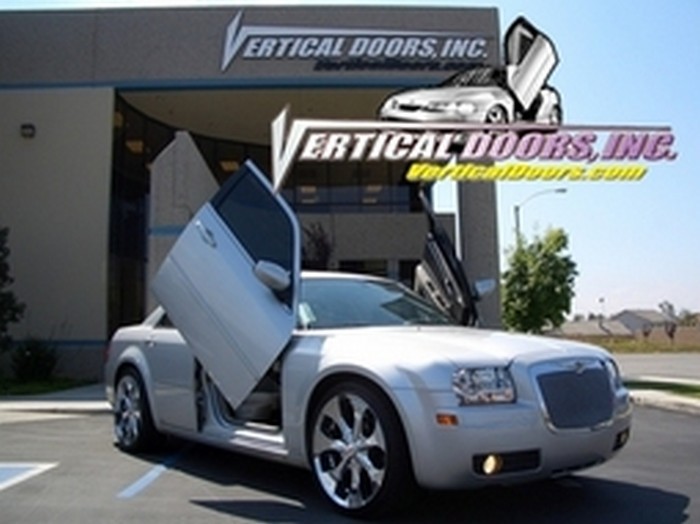

This kit covers the Chrysler 300 from 2004 through 2010 and fits every trim level in that range. It is a complete lambo door conversion from Vertical Doors, Inc., engineered for this specific body rather than adapted from a universal hinge. With it installed, your factory doors open outward a short way and then rotate up vertically.

2 Vertical Doors, Inc. lambo door hinges, one for each side
2 gas shocks to support the doors in the raised position
All mounting hardware for the conversion

Part number VDCCRY3000410 mounts as a direct bolt-on to the factory bolt pattern, and the conversion is completely reversible if you ever want the car back on its stock hinges. VDI builds the kit in the USA from domestic hardened steel, and the design is patented here as well. An instruction manual comes in the box along with free tech support from VDI, and we recommend having a professional installer do the work using those instructions so the doors line up and operate the way they should.

// The part you’re buying

Drag to turn it, Space to open the door, Z to zoom on the hinge, X to take it apart.

Shown: a typical VDI kit. Your kit is made for your car, so its exact plate, arm, brackets and shock differ from this drawing.

The kit you buy: mounting plate, pin and hub, swing arm, door bracket, gas shock, cam stop, boltsYour car: the body apron and the doorThe factory hinge it replacesThe kit starts as its separate pieces, then goes together in the order it's fitted. The door first swings out on the vertical pin, then lifts on the round bearing hub, and the gas shock holds it up: the two-stage motion in VDI's patent (US 6,845,547). Each kit has right and left hinge assemblies, two gas shocks, M8 bolts with washers, shoulder bolts and pins (VDI install manuals); set screw #2 and nut #1 adjust where the door closes. A typical kit, drawn from VDI's Crossfire manual: the plate, arm, brackets, shock and angles differ by vehicle, and each kit is made for its car.
